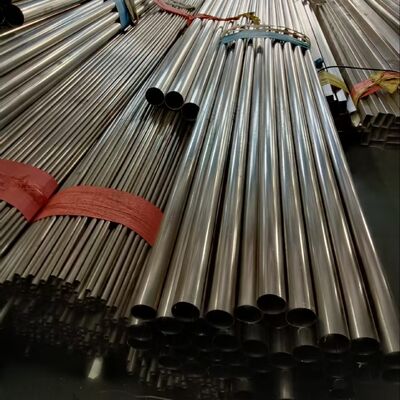

304 304L 316 ERW/Welded Stainless Steel Plain End Tube For Decorative Purpose

304 304L 316 ERW/Welded Stainless Steel Plain End Tube For Decorative Purpose

ERW is the abbreviation of "Resistance Welding" in English. The core principle of its manufacturing process is to utilize the heat generated by the resistance of current passing through the metal, to heat the edge of the tube blank to a molten or plastic state, and then achieve welding under the action of pressure.

In simple terms, the production process of ERW stainless steel pipes is as follows:

Stainless steel strip/roll → Forming (gradually rolled into a cylindrical shape) → Resistance welding → Weld seam treatment (removing internal and external weld scars, heat treatment) → Diameter control, straightening → Cutting, inspection → Finished product.

Main features

High-efficiency economy: The production line operates continuously at high speed, with high material utilization rate (no cutting waste), and the production cost is lower compared to seamless tubes, especially suitable for large-scale, standard-sized production.

High dimensional accuracy: The outer diameter and wall thickness are well controlled, and the inner and outer surfaces are smooth.

Strength and toughness: Through cold processing and appropriate weld heat treatment, excellent mechanical properties can be achieved.

The weld is crucial: The quality of the weld is the lifeline of ERW pipes. Modern advanced ERW technologies (such as high-frequency welding) can make the weld strength reach or even exceed the strength of the base material.

Flexible in length: It can produce ultra-long fixed-length pipes according to requirements, reducing the number of joints.

Product Show

Application

Product Test

Certificates

Testing

Packing and Shipping

F&Q

Q: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q: HOW TO GET A SAMPLE?
A: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q: HOW TO VISIT YOUR FACTORY?
A: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
