201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture

201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture

Merknaam: WUXI SYLAITH
Modelnummer: ASTM A179 / A213 / A519
MOQ: 1 mt
Prijs: negotiable
Betalingsvoorwaarden: L/c, t/t
Toeleveringsvermogen: 50000MT/year
Gedetailleerde informatie
Plaats van herkomst:
Jiangsu China (Vasteland)
Certificering:
SGS ISO ROHS
Applicatie:
Ketel | Constructie | Chemical | Exchanger
Standaard:
ASTM,DIN,API,GB,JIS
Specificatie:
201 304 316 430
Materiaal:
Roestvrij staal
Productnaam:
Naadloze roestvrijstalen buis | naadloze stalen buizen
Sectie vorm:
Ronde
Techniek:
Naadloos | koud getrokken
Oppervlaktebehandeling:
Vernis
Verpakking Details:
Standaard waterdicht pakket
Levering vermogen:
50000MT/year
Productbeschrijving

201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture



Basic Info.

Model NO.
Stainless Steel
Type
Welded
Technique
ERW
Material
Stainless Steel
Surface Treatment
Polished
Usage
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
Section Shape
Round
Standard
ASTM, AISI, GB, JIS, DIN, En
Certification
ISO, RoHS, Ibr, AISI, ASTM, GB, En, DIN, JIS
Transport Package
Waterproof-Packaging
Specification
1/2"-28"(DN15-DN700)/21.3mm-711mm
Trademark
SYLAITH
Origin
China
HS Code
730611
Production Capacity
5000tons/Year



Product Description





Wuxi Sylaith Special Steel Co.,Ltdis located in Chinais economy, industry and shipping center-Wuxi city, .The total investment is 10 million RMB.

The main products are the series of 200, 300, 400 stainless steel .And this year ,we also start to work on aluminum material.Various size can be produced according to customer is demand. Our factory also have the equipment for 8K ,NO.4 sheet, hairline sheet and attaching film. Our products have been exported Indonesia, India, Mexico, South Korea, Germany, Israel, Russia and so on. Our material is widely used in home appliances, kitchen supplies, medical equipment, auto parts, decorative tube, industrial pipe, chemical industry, petroleum, boilers, food industry and other industries.We keep pace with the times, constantly consolidate our strength, improve the quality of our products, and continuously.



Product Name Stainless steel welded pipe/tube
Standard ASTM, GB, JIS, DIN, EN, AISI
Material Grade TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S
TP410 TP410S TP430
S31803/S32205 S32750 S32760
904L
Outer Diameter Seamless Pipe: 4mm-812.80mm
Welded Pipe: single slit(Φ6mm-Φ630mm)
Thickness Seamless Pipe: 0.5mm - 60mm
Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm)
Length 5.8-6.1 m or as customers' request(Max20 meters)
Tolerance Acording to the Standard.
Surface 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish
Test UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers
Certificate ISO9001-2008,ASME, PED
Delivery Time 3-25 Days, Depends on quantity
Usage: Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Machinery Industry, Chemical Industry, Mining, Construction & Decorati



Chemical Composition


Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -3.0
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -









Factory test and other terms





1.Hydrostatic or Nondestructive Electric Test

2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking

6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.





Grade and Chemical Composition (%)





STANDARD GRADE CHEMICAL COMPOSITION
C Si Mn P S Cr Mo Cu Ni V
ASTM A179 A179 ≤0.06-0.18 / 0.27-0.63 ≤0.035 ≤0.035
ASME SA106 SA106B 0.170.25 ≥0.1 0.701.00 ≤0.030 ≤0.030 ≤0.035
ASTM A106 A ≤0.25 ≤0.10 0.270.93 ≤0.035 ≤0.035 ≤0.40 ≤0.15 ≤0.40 ≤0.40 ≤0.08
B ≤0.30 ≤0.10 0.291.06 ≤0.035 ≤0.035 ≤0.40 ≤0.15 ≤0.40 ≤0.40 ≤0.08
C ≤0.35 ≤0.10 0.291.06 ≤0.035 ≤0.035 ≤0.40 ≤0.15 ≤0.40 ≤0.40 ≤0.08
ASTM A53 A 0.25 / 0.95 0.05 0.045 0.40 0.15 0.40 0.40 0.08
B 0.3 / 1.2 0.05 0.045 0.40 0.15 0.40 0.40 0.08







Mechanical Properties





Mechanical properties
Material

Min Tensile strenght

N/mm2

Min. Yield strengh

N/mm2

Min Elongation

%

ASTM A53 Gr.B

330 205 35
ASTM A53 Gr.B 415 240 30

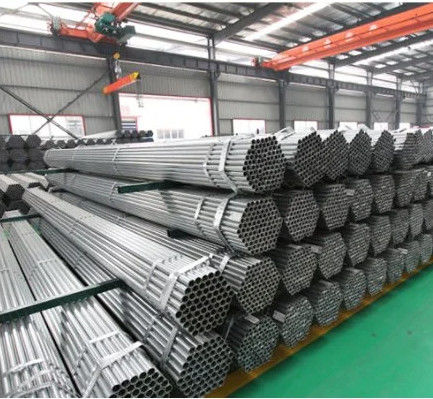

Detailed Photo







201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture 0





Factory Photo



201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture 1





Processing



201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture 2





Applications:



1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.

2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field

3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;

4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc

5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc

201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture 3



Packaging & Shipping:



201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture 4

201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture 5





Certificates:

201 202 304 316 316L 321 420 430 310S Polished Seamless Stainless Steel Pipe Tube for architecture 6





FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi
Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
